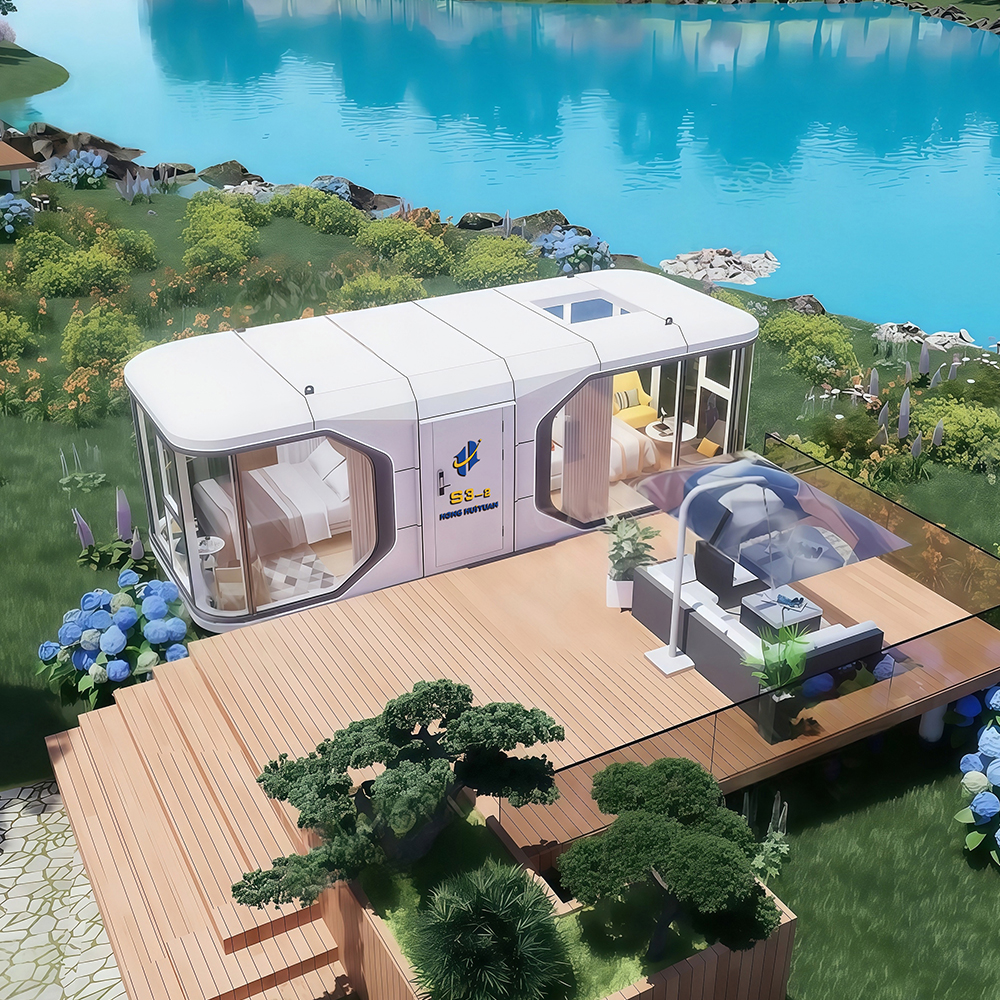

S3-2 Panoramic Modular Capsule Homes

S3-2 Panoramic Modular Capsule Homes: Technical Deep Dive & Industry Knowledge

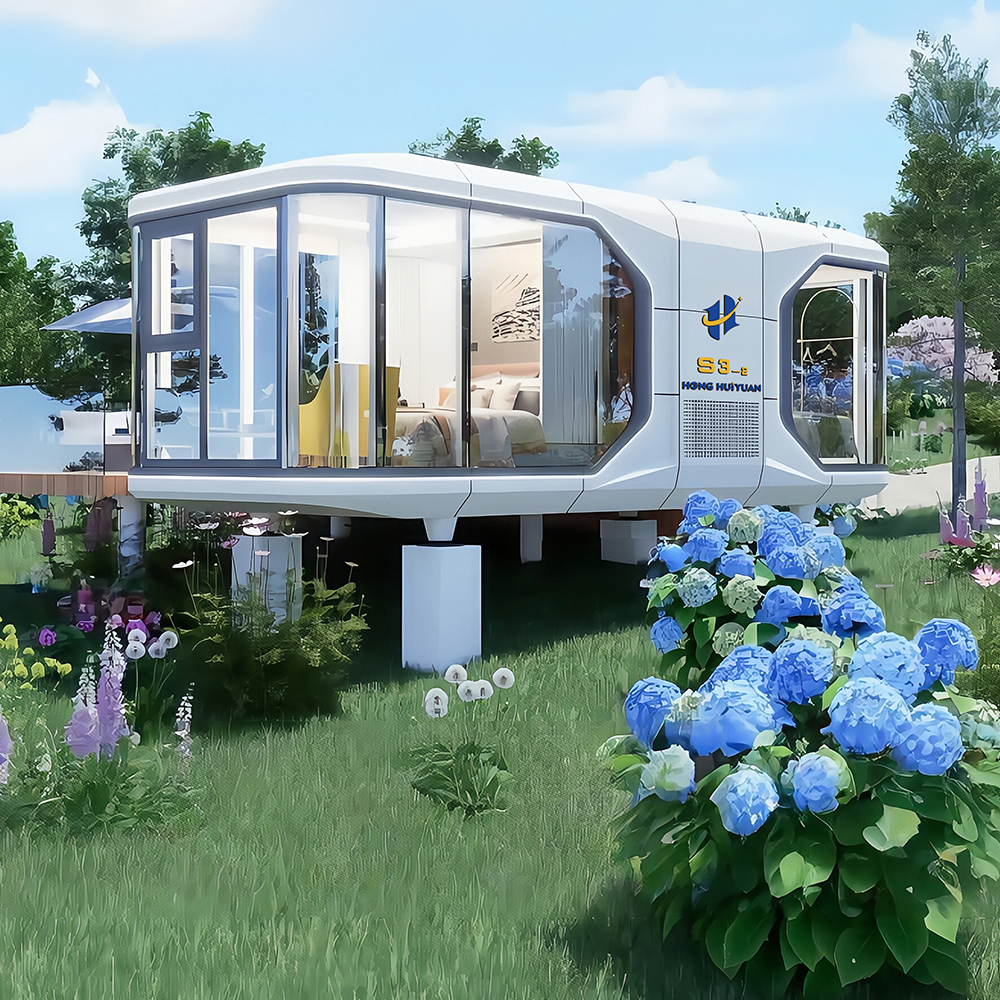

The S3-2 Panoramic Modular Capsule Homes represent a significant advancement in the modular living sector, combining residential comfort with the efficiency of prefabricated construction. Designed for the premium hospitality and specialized accommodation market, this unit offers a unique value proposition through its durable materials, intelligent features, and optimized spatial layout. This article provides an engineer-level analysis of its design, engineering, and application potential for developers, investors, and procurement specialists.

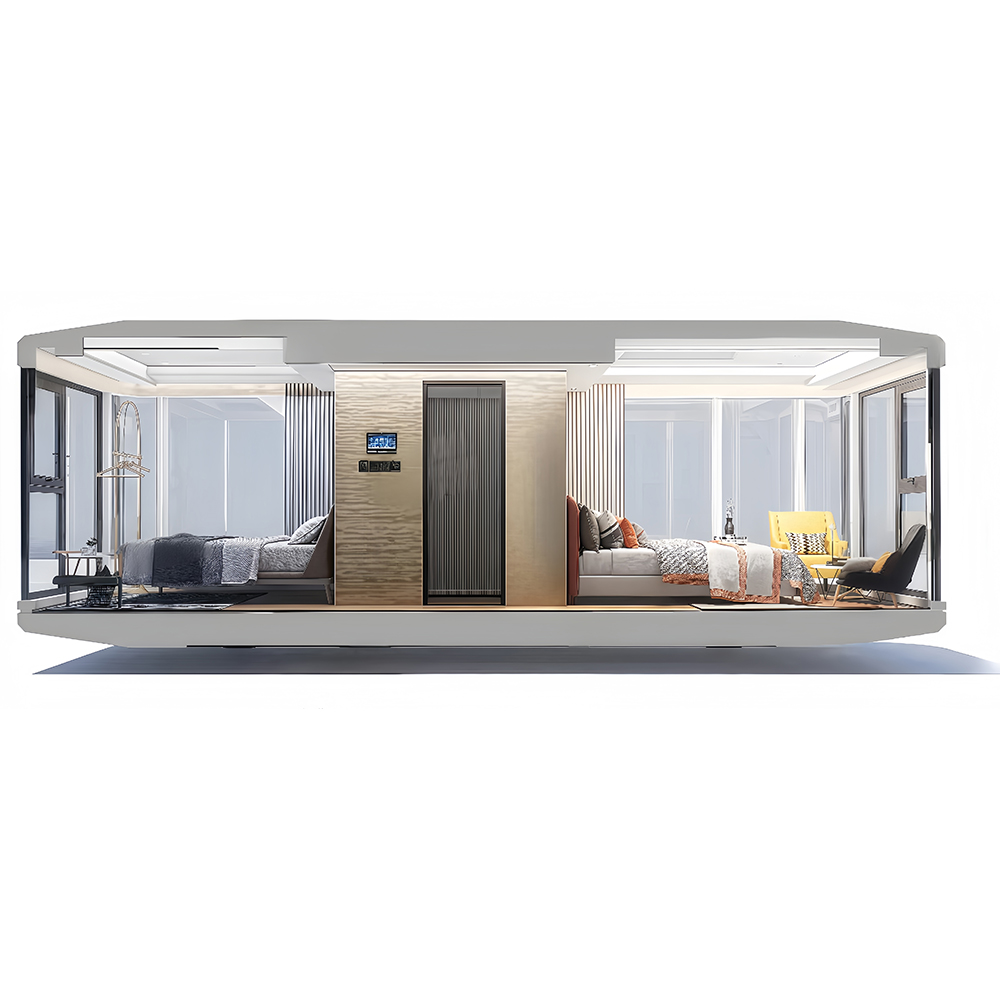

1. The Engineering of Compact Living: Analyzing the 28㎡ Two-Bedroom Layout

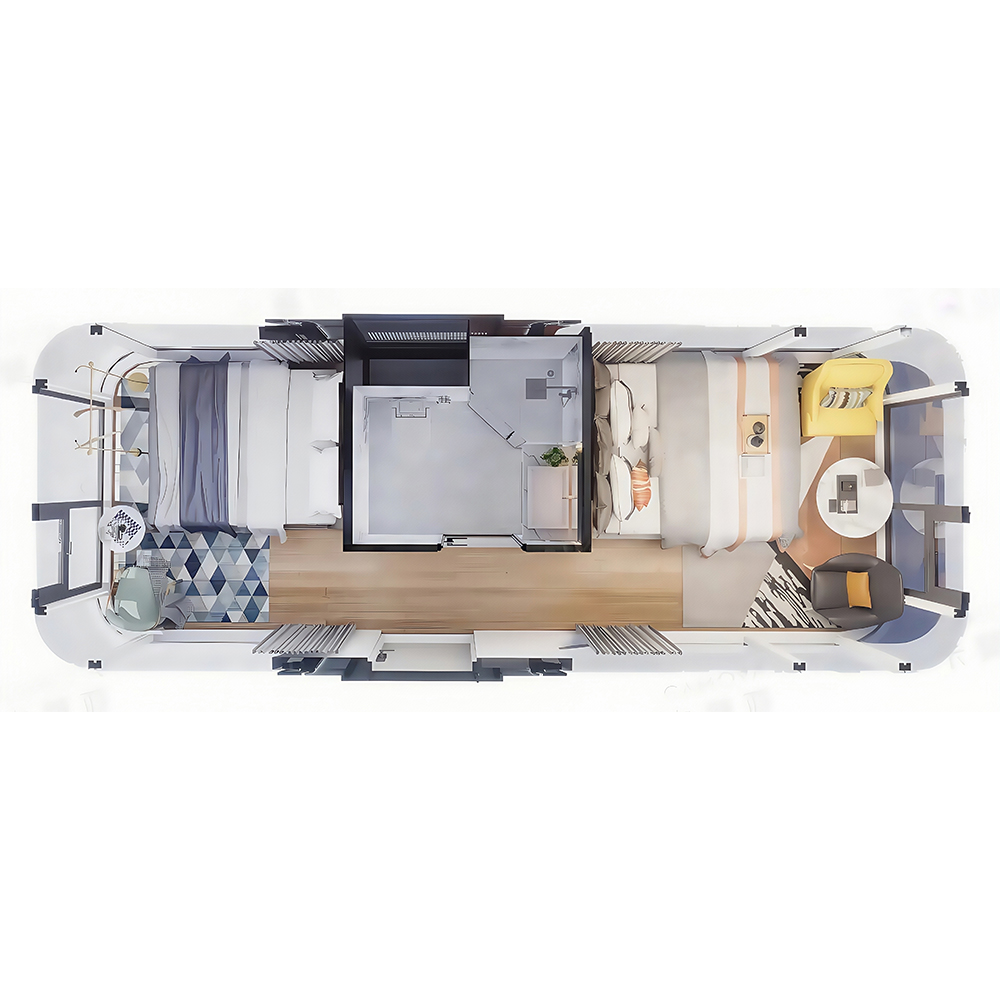

Achieving a functional two-bedroom, one-bathroom layout within 28 square meters requires precise engineering and a clear understanding of spatial flow. The design of the S3-2 prioritizes guest privacy and comfort without compromising on the sense of openness.

1.1 Spatial Efficiency and Zoning Logic

• Central Core Design: The bathroom is positioned as a central "wet core." This placement acts as an effective sound buffer between the two sleeping areas and simplifies the routing of all plumbing and ventilation systems to a single, accessible point.
• Eliminating Circulation Waste: By arranging the two bedrooms and living area around this central core, the design minimizes dedicated hallway space. The living area itself serves as the primary circulation node, making every square meter usable.
• Dry-Wet Separation: The bathroom features a physical separation between the sink/toilet area and the shower zone. This allows multiple guests to use different functions simultaneously, a critical feature for a two-bedroom unit targeting families or small groups.

1.2 Visual Expansion Through Glazing

The perceived spaciousness is dramatically enhanced by the extensive use of glass.

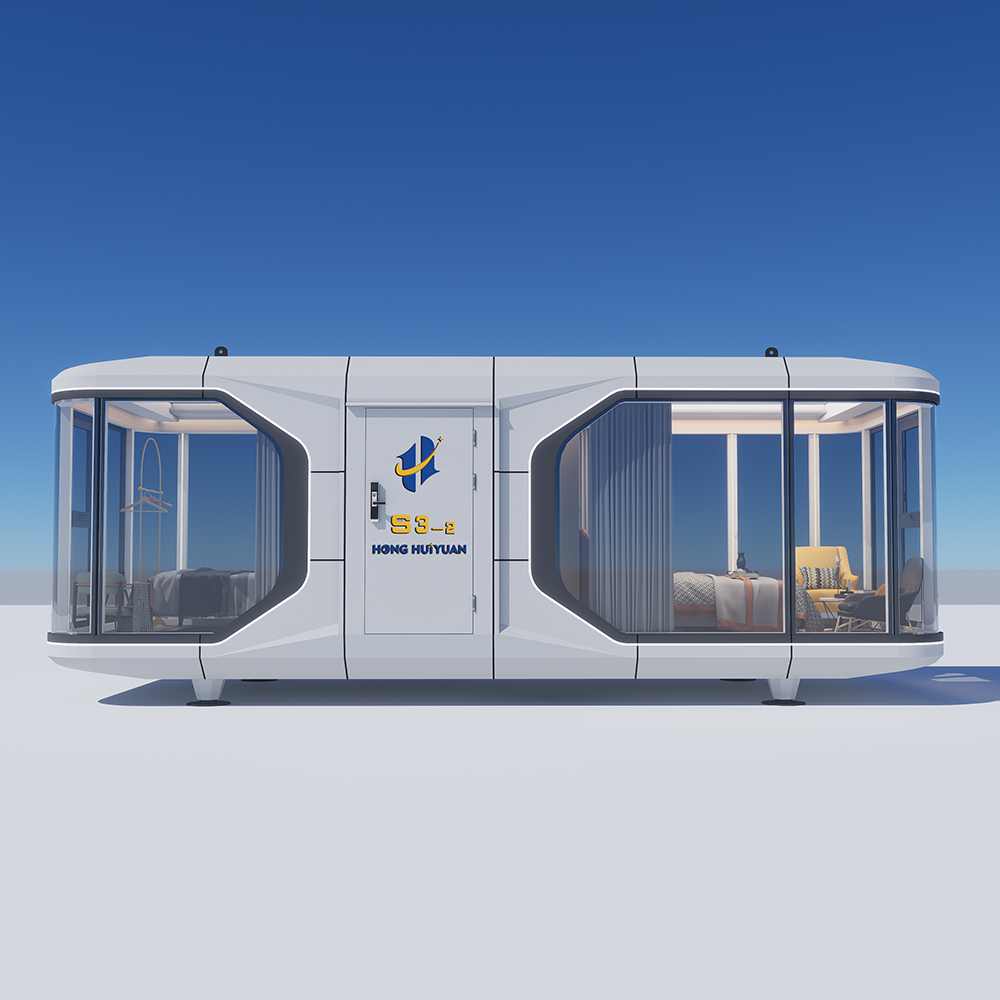

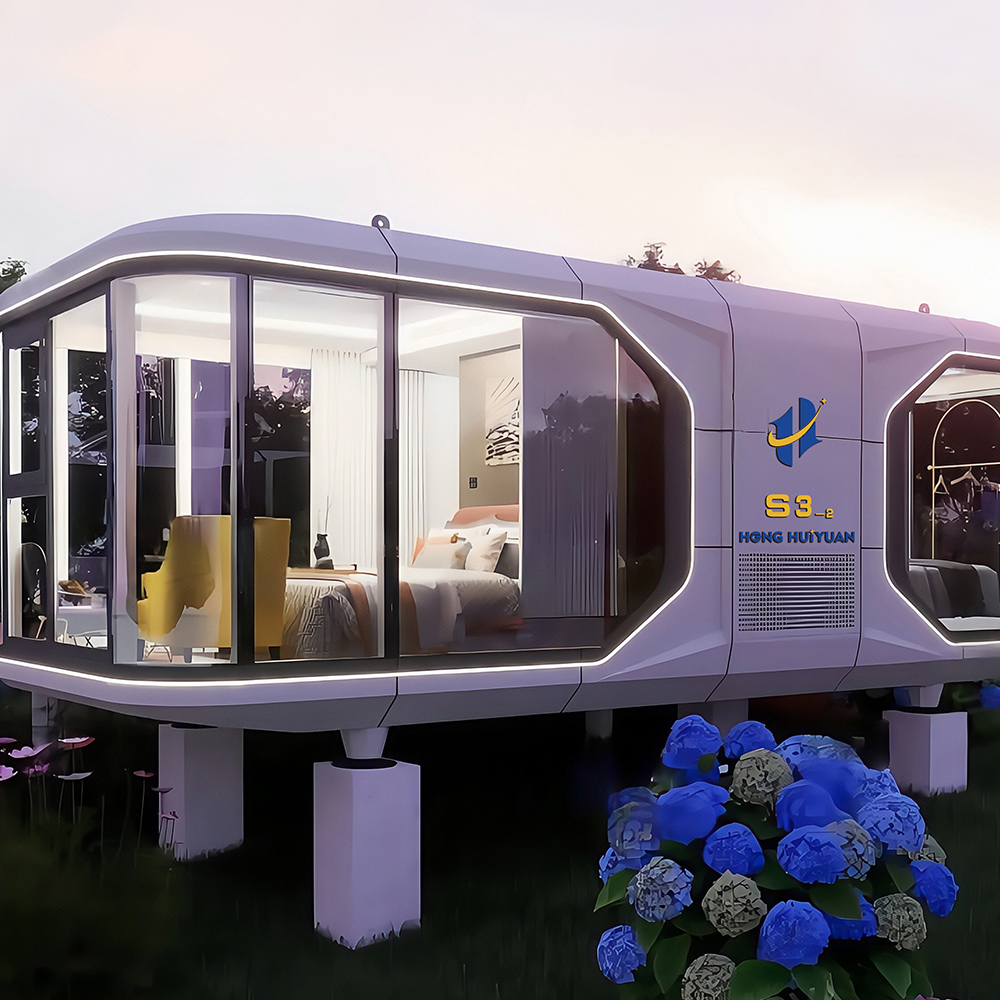

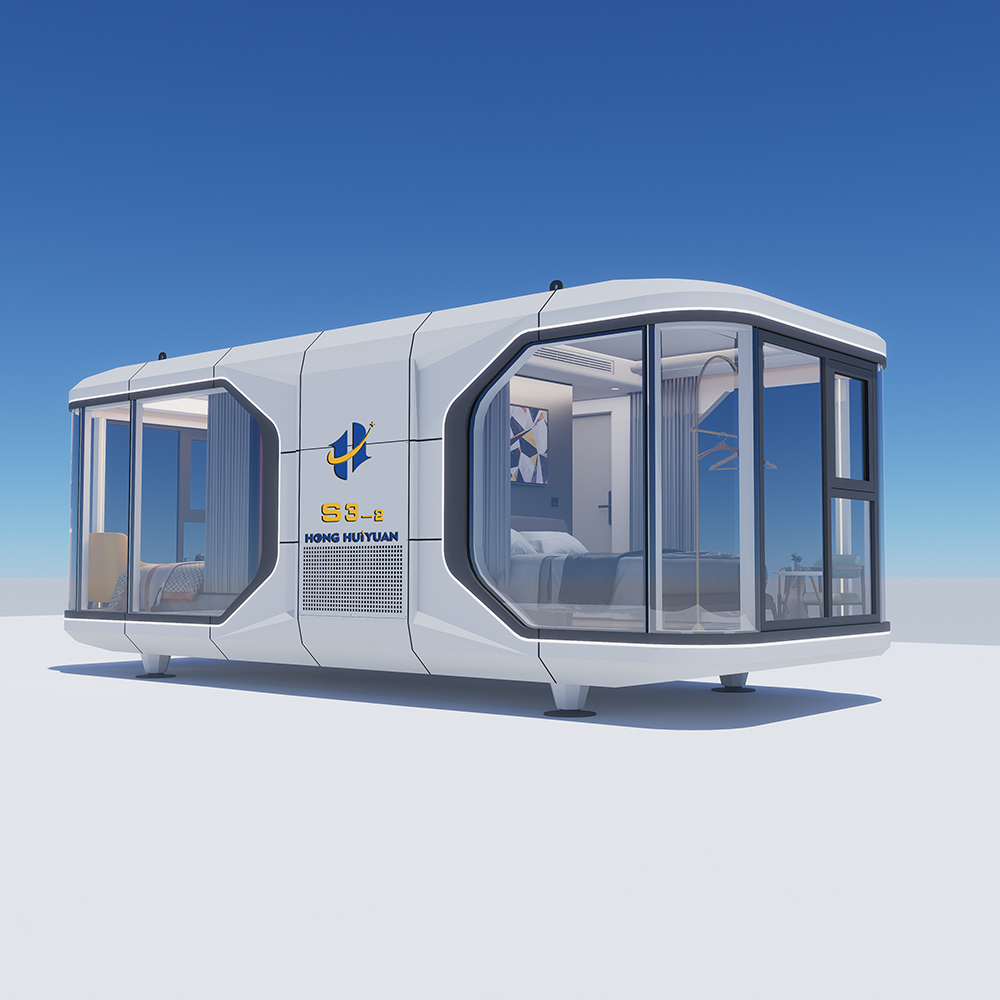

• 270-Degree Panoramic Windows: By wrapping the glass around two full sides and a corner, the physical boundaries of the room are visually dissolved. The exterior landscape becomes an extension of the interior living space.
• Large Skylight Integration: The overhead glazing introduces natural light deep into the floor plan and offers stargazing opportunities, adding a unique experiential layer that compensates for the compact footprint.
• Acoustic and Thermal Performance: All glazing is specified as 6+12+6mm insulating glass. This laminated unit provides sound reduction (RW ~35-40 dB) and thermal insulation (U-value ~1.1 W/m²K), ensuring comfort is not sacrificed for the view.

2. Material Science for Longevity: Achieving a 50-Year Service Life

The projected 50-year lifespan of the S3-2 is not a marketing claim but a direct result of material selection and protective engineering, particularly for the exterior envelope.

2.1 The Exoskeleton: Fluorocarbon Paint and Aluminum

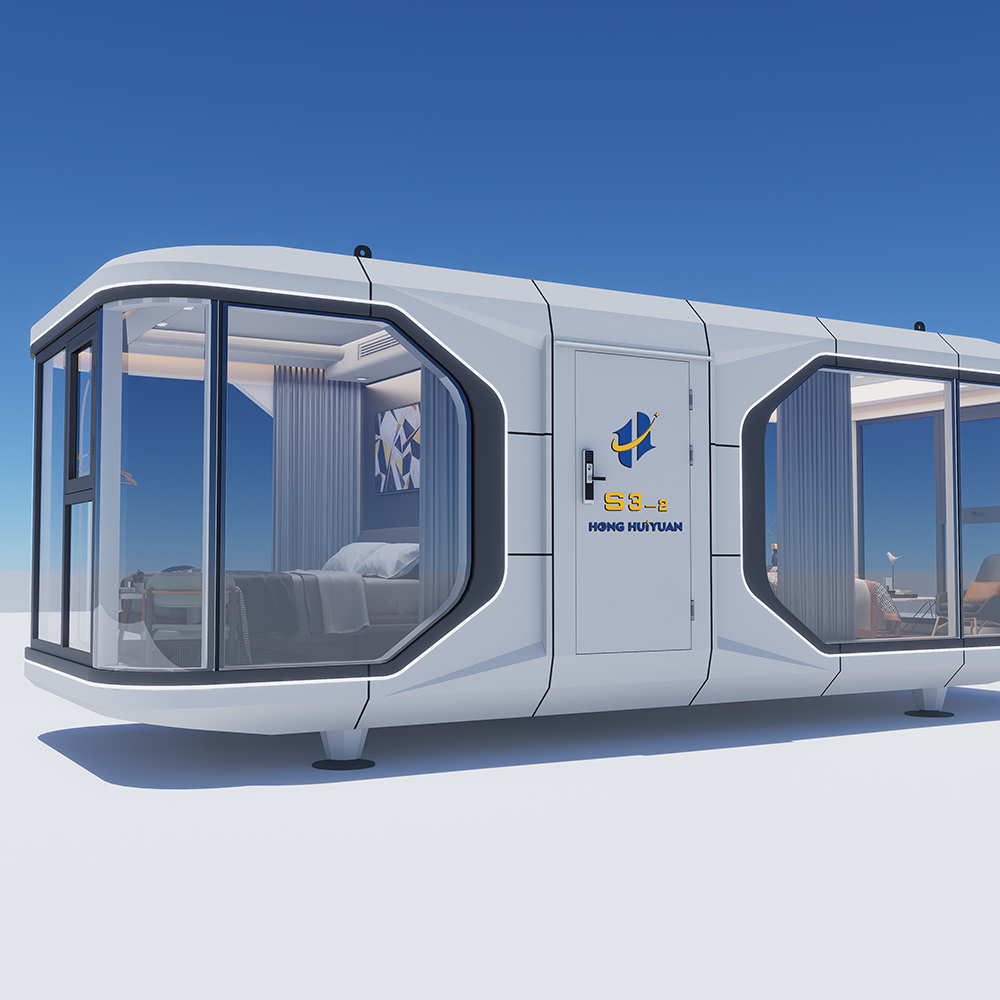

The exterior uses aluminum panels with a fluorocarbon baking finish. This is a critical specification.

• Weathering Resistance: Fluorocarbon coatings (typically PVDF) are known for their exceptional resistance to UV radiation, chalking, and color fading. They maintain their integrity for decades in harsh sunlight.
• Corrosion Protection: Aluminum is naturally corrosion-resistant. The fluorocarbon layer adds a near-impermeable barrier against airborne salts in coastal environments and industrial pollutants. This combination ensures the capsule maintains its "sci-fi appearance" without rust or degradation.

2.2 The Skeleton: Hot-Dip Galvanized Steel Frame

The structural frame is the backbone of the unit's longevity.

• Galvanization Thickness: Hot-dip galvanizing creates a metallurgically bonded zinc coating, typically 50-100 microns thick. This coating sacrifices itself to protect the underlying steel, preventing rust even if the surface is scratched.
• Structural Integrity: The thickened steel frame is engineered to handle static and dynamic loads (wind, snow, seismic) for five decades. This robustness is essential for a "detachable" unit that may be relocated, which imposes stresses not found in permanent foundations.

The following table compares the durability features of the S3-2 against industry standard construction.

3. Intelligent Systems and User Experience Integration

The S3-2 elevates the user experience through the seamless integration of a whole-house intelligent voice control system. This moves beyond simple automation to create a genuinely interactive environment.

• Voice-Activated Environment: Guests can control electric curtains, multi-color warm lighting, and the air conditioning unit through simple voice commands. This frictionless interaction enhances the feeling of luxury and modernity.
• Integrated Comfort Control: The system can manage the multi-in-one integrated bathroom heater, ensuring the bathroom is pre-warmed or the ventilation is activated without the guest touching a switch.
• Operational Benefits for Managers: The intelligent system can provide data on energy consumption, room occupancy, and even alert maintenance to potential issues (e.g., a door left ajar), enabling proactive property management.

4. From Product to Project: Zhejiang Honghuiyuan's Customization and Implementation

The S3-2 capsule is the core product, but its successful integration into a project relies on the capabilities of its manufacturer, Zhejiang Honghuiyuan Import & Export Co., Ltd. Their offering extends far beyond the physical unit.

• Cultural and Landscape Integration: The company's R&D team works to blend the capsule with local culture and natural landscapes. This can involve customizing the exterior fluorocarbon paint color to match the environment or selecting interior finishes that reflect regional aesthetics.
• Climate-Specific Adaptation: For projects in demanding climates, Zhejiang Honghuiyuan engineers can integrate the full range of optional systems: electric floor heating for cold regions, the water pipe antifreeze system for sub-zero zones, and enhanced ventilation for humid tropics.
• End-to-End Solution: The company provides market analysis, project planning, custom design, and complete project implementation. This means a buyer receives support from the initial concept, through custom manufacturing, to logistics and on-site deployment, ensuring the investment translates directly into a successful operational project.

FAQ: S3-2 Panoramic Modular Capsule Homes

How durable are the panoramic windows in remote or harsh locations?

The S3-2 uses 6+12+6mm insulating glass. This is tempered or laminated safety glass, which is highly resistant to impact. The 12mm air gap is filled with inert gas (often argon) to prevent condensation and improve thermal performance. For remote locations prone to severe weather, the structural frame and glazing seals are engineered to meet local wind load and snow load requirements. Optional protective shutters can also be integrated for extreme conditions.

Can the two-bedroom layout be reconfigured into a larger one-bedroom suite?

Yes, customization is a key offering from Zhejiang Honghuiyuan. While the standard layout is fixed for efficiency, the internal, non-structural walls (using bamboo charcoal fiberboard) can be modified during the design phase. Removing the partition between the two bedrooms can create a spacious master suite with a separate living area. This should be discussed during the project planning stage to ensure the electrical and HVAC layouts are adjusted accordingly.

What are the specific maintenance requirements for the fluorocarbon paint finish?

The fluorocarbon finish is exceptionally low-maintenance. Its primary purpose is to resist dirt accumulation and chemical degradation. Typically, periodic washing with mild soap and water (annually or bi-annually) is sufficient to maintain its appearance. Unlike standard paints, it will not chalk or fade noticeably over time, which is fundamental to the 50-year lifespan claim. Avoid abrasive cleaners that could scratch the surface.

How does the intelligent voice control system handle multiple languages or no internet?

The whole-house intelligent control system in the S3-2 is typically designed with multilingual support, covering major languages like English, Spanish, Mandarin, etc. For operation in areas with unreliable internet, the core functions (lighting, curtains, AC) are usually hardwired to the central controller and can be operated via the voice system locally, or through manual switches as a backup. Cloud-dependent features (like weather updates or streaming) would require a stable connection. Specific capabilities should be confirmed with the technical team during procurement.

What is the typical timeline from order to delivery for a customized S3-2 project?

For a customized project involving Zhejiang Honghuiyuan's end-to-end solution, the timeline generally includes: 1) Design and engineering phase (2-4 weeks, depending on complexity). 2) Material procurement and self-owned factory production (6-8 weeks). 3) Quality assurance and shipping preparation (1-2 weeks). Ocean freight times vary by destination. This integrated timeline, managed by a single provider, often results in faster project completion compared to traditional construction or dealing with multiple sub-suppliers.
